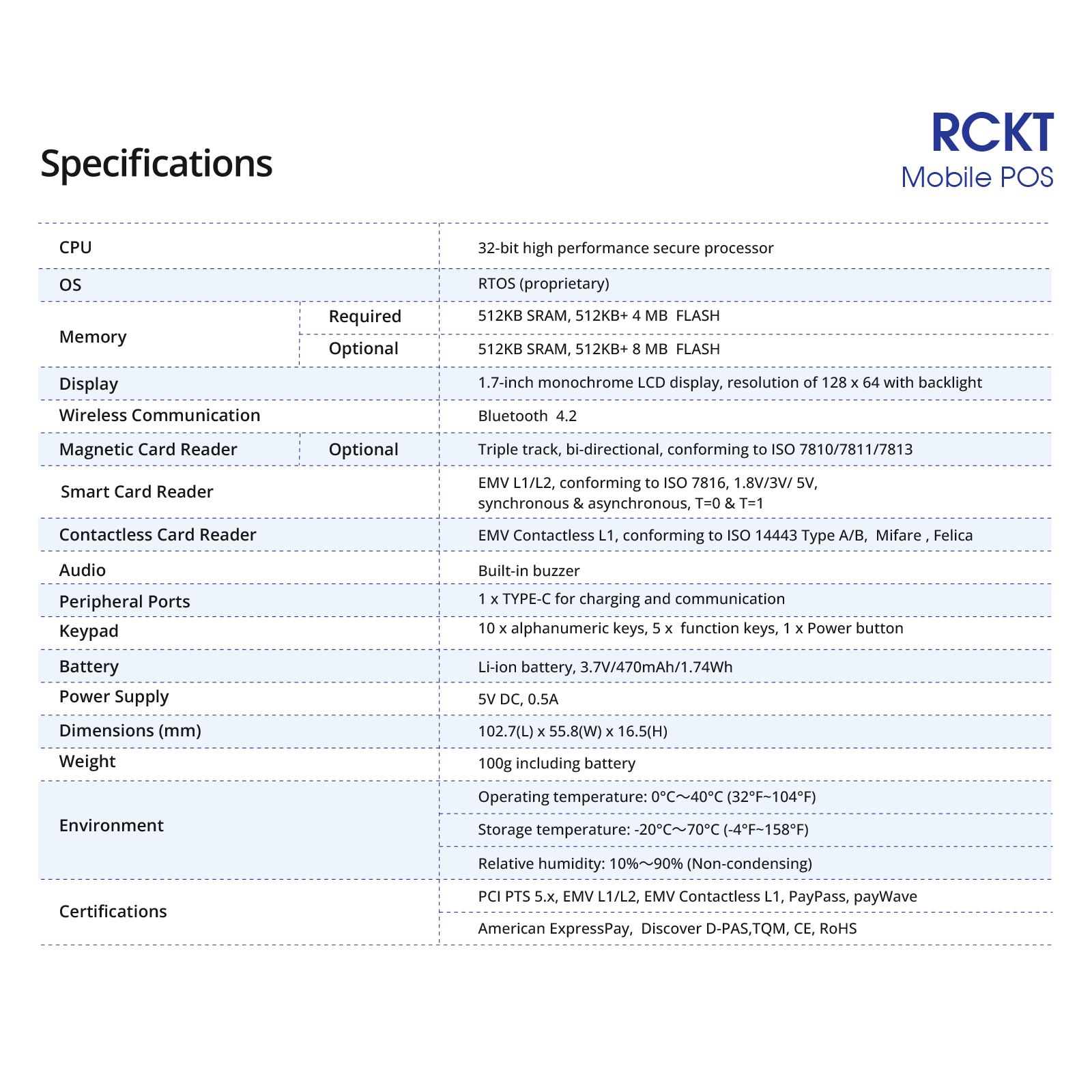

| CPU | 32-bit high performance secure processor | |
| OS | RTOS (proprietary) | |
|
Memory |
Required | 512KB SRAM, 512KB+ 4 MB FLASH |
| Optional | 512KB SRAM, 512KB+ 8 MB FLASH | |
| Display | 1.7-inch monochrome LCD display, resolution of 128 x 64 with backlight | |
| Wireless Communication | Bluetooth 4.2 | |
| Magnetic Card Reader | Optional | Triple track, bi-directional, conforming to ISO 7810/7811/7813 |
| Smart Card Reader | EMV L1/L2, conforming to ISO 7816, 1.8V/3V/ 5V,
synchronous & asynchronous, T=0 & T=1 |
|
| Contactless Card Reader | EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare , Felica | |
| Audio | Built-in buzzer | |
| Peripheral Ports | 1 x TYPE-C for charging and communication | |
| Keypad | 10 x alphanumeric keys, 5 x function keys, 1 x Power button | |
| Battery | Li-ion battery, 3.7V/470mAh/1.74Wh | |
| Power Supply | 5V DC, 0.5A | |
| Dimensions (mm) | 102.7(L) x 55.8(W) x 16.5(H) | |
| Weight | 100g including battery | |
|
Environment |
Operating temperature: 0°C～40°C (32°F~104°F) | |
| Storage temperature: -20°C～70°C (-4°F~158°F) | ||
| Relative humidity: 10%～90% (Non-condensing) | ||
|
Certifications |
PCI PTS 5.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave | |
| American ExpressPay, Discover D-PAS,TQM, CE, RoHS | ||
