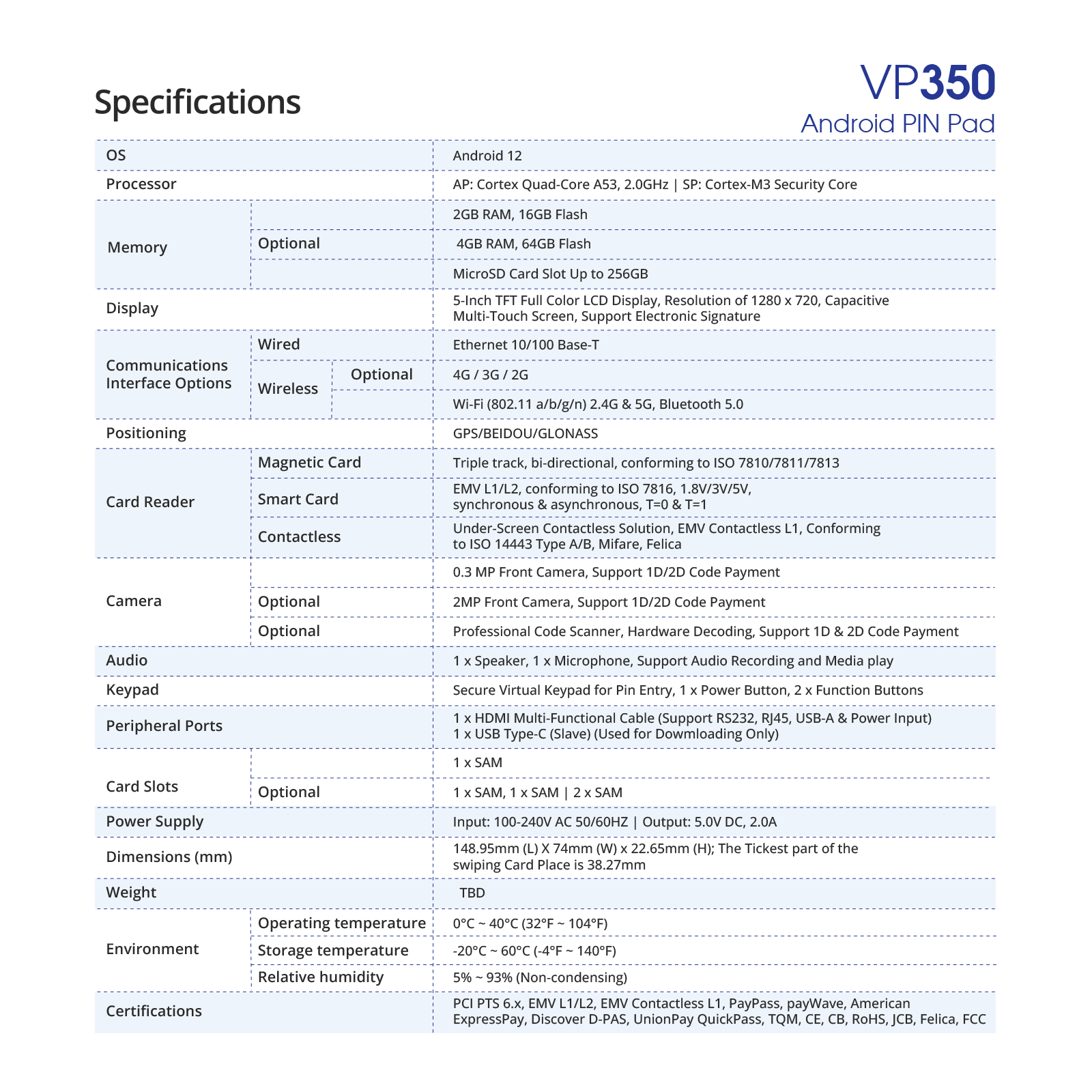

| OS | Android 12 |
| Processor | AP: Cortex Quad-Core A53, 2.0GHz | SP: Cortex-M3 Security Core |
| Memory | 2GB RAM, 16GB Flash |
| Optional 4GB RAM, 64GB Flash | |
| MicroSD Card Slot Up to 256GB | |
| Display | 5-inch TFT Full Color LCD Display, Resolution of 1280 x 720, Capacitive Multi-Touch Screen, Support Electronic Signature |
| Communications Interface Options | Wired Ethernet 10/100 Base-T |
| Wireless Optional Wi-Fi (802.11 a/b/g/n) 2.4G & 5G, Bluetooth 5.0 | |
| Positioning | GPS/BEIDOU/GLONASS |
| Card Reader | Magnetic Card Triple track, bi-directional, conforming to ISO 7810/7811/7813 |
| Smart Card EMV L1/L2, conforming to ISO 7816, 1.8V/3V/5V, synchronous & asynchronous, T=0 & T=1 | |
| Contactless Under-Screen Contactless Solution, EMV Contactless L1, Conforming to ISO 14443 Type A/B, Mifare, Felica | |
| Camera | 0.3 MP Front Camera, Support 1D/2D Code Payment |
| Optional 2MP Front Camera, Support 1D/2D Code Payment | |
| Optional Professional Code Scanner, Hardware Decoding, Support 1D & 2D Code Payment | |
| Audio | 1 x Speaker, 1 x Microphone, Support Audio Recording and Media play |
| Keypad | Secure Virtual Keypad for Pin Entry, 1 x Power Button, 2 x Function Buttons |
| Peripheral Ports | 1 x HDMI Multi-Functional Cable (Support RS232, RJ45, USB-A & Power input) |
| 1 x USB Type-C (Slave) (Used for Downloading Only) | |
| Card Slots | Optional 1 x SAM, 1 x SAM | 2 x SAM |
| 1 x SAM | |
| Power Supply | Input: 100-240V AC 50/60Hz | Output: 5.0V DC, 2.0A |
| Dimensions (mm) | 148.95mm (L) X 74mm (W) x 22.65mm (H); The Thickest part of the swiping Card Place is 38.27mm |
| Weight | TBD |
| Environment | Operating temperature 0°C-40°C (32°F-104°F) |
| Storage temperature -20°C~60°C (-4°F~140°F) | |
| Relative humidity 5%-93% (Non-condensing) | |
| Certifications | PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, UnionPay QuickPass, TQM, CE, CB, RoHS, JCB, FeliCa, FCC |
